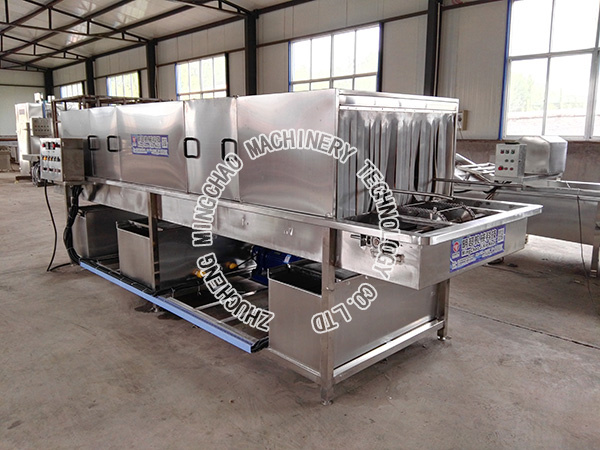

Circulation basket cleaning machine

Equipment features:

1, the transmission part of the machine is made of SUS304 stainless steel mesh belt, which runs smoothly and has long service life. It meets the requirements of food hygiene.

2, the transmission part adopts speed control deceleration motor to make material cleaning time adjustable.

3, divided into three stages of cleaning, water can be recycled, saving energy and water sources. Each section is equipped with multilayer filter to prevent nozzle blockage. With automatic water control device, water pump is damaged due to lack of water.

4. the whole machine is made of stainless steel SUS304 stainless steel.

5. Equipment Overview: after the opening of the machine, from the artificial feed to the spray cleaning machine chain track or by the transport connection automatic feed, advanced line spray, and then hot water spray, and then water circulation spray. The three groups are independent, the external circulating water tank and the filter net can be easily extracted. The turnover box is operated by manual operation.

6, motor power: pre washing 1.5KW, main washing 5.5KW, clean water spray: 0.75KW, three sets.

7, equipment configuration: the body thickness is 2mm, the bracket adopts 50*50*2mm square tube, the spray pipe is 38mm.

8, electrical components are made of CHINT electric and control box Stainless Steel in Zhejiang.

9, the equipment is made of stainless steel 304 besides motor and rubber.
